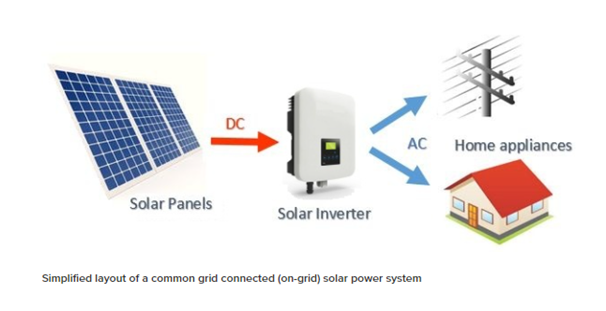

Grid tie solar system which is the most cost effective type compared to off grid and hybrid solar system. If system is producing more power than is being consumed, the surplus is fed into the main electrical grid via net metering. At the time of electricity billing, power Provider Company will adjust the exported units in your electricity bill.
Advantages of On-Grid Systems:
- Very little maintenance due to absence of batteries
- Low initial cost compared to off grid and hybrid solar system
- No storage related losses due to absence of batteries
- Huge reduction in electricity bills

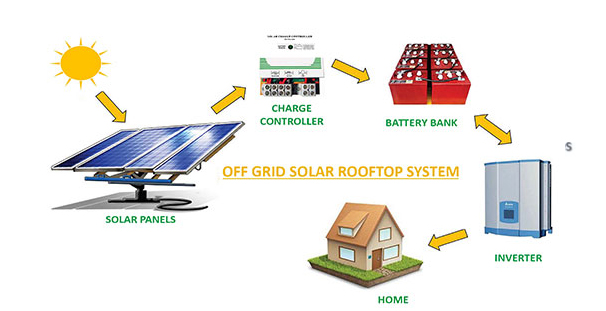

Applications of Off-Grid systems:
- Electrification in rural and remote areas
- Emergency Power Supply in case of natural disasters
- Power Backup for users facing frequent power cuts
|
We are happy to introduce some of the Off-Grid Solar Project Models for small-medium families, small offices & Shops which will save 40% to 80% of your total electricity bill. |
||
|
|
||
|
Plan Alpha – Economically suitable for small families using equipments like 7-8 LED lights, 1-2 fans & TV(LED/LCD) |
||
|
Equipment Required |
Quantity |
Cost |
|
Solar Panel 450W MONO PERC |
1 |
Rs 65000 to Rs 75000 (Including installation & spare materials) |
|
Off grid Solar inverter – 1 kVA |
1 |
|
|
MPPT charge controller |
1 |
|
|
C10 battery (150 Ah) |
1 |
|
|
Module mounting structure |
As per site condition |
|
|
|
||
|
Plan Beta- Suitable for small families using equipments like 10-12 LED lights, 3-4 fans , TV(LED/LCD) Fridge & Washing machine with inverter technology |
||
|
Equipment Required |
Quantity |
Cost |
|
Solar Panel 450W MONO PERC |
2 |
Rs 1,15,000 to Rs 1,25,000 (Including installation & spare materials) |
|
Off grid Solar inverter – 2 kVA to 3 kVA |
1 |
|
|
MPPT charge controller |
1 |
|
|
C10 battery (150 Ah) |
2 |
|
|
Module mounting structure |
As per site condition |
|
|
|
||
|
Plan Gamma – Suitable for small families using equipments like 12-15 LED lights, 3-4 fans , TV(LED/LCD), Fridge, Washing machine & Air Condition with inverter technology |
||
|
Equipment Required |
Quantity |
Cost |
|
Solar Panel 545W MONO PERC |
3 |
Rs 1,60,000 to Rs 1,70,000 (Including installation & spare materials) |
|
Off grid Solar inverter – 3 kVA |
1 |
|
|
MPPT charge controller |
1 |
|
|
C10 battery (200 Ah) |
2 |
|
|
Module mounting structure |
As per site condition |
|
|
For more details please contact : 8589096701 |
||

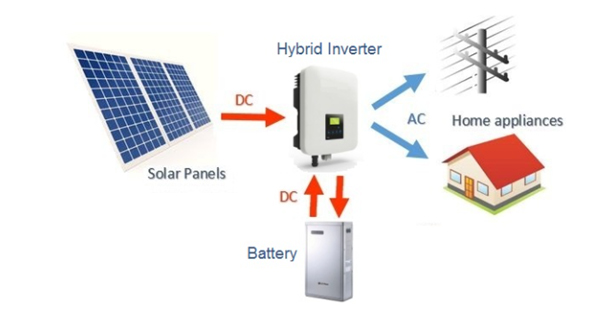

Generate power in the same way as a common on-grid solar system but use special hybrid inverters and batteries which send energy to power home and to store energy for later use. The leftover energy is sent to the grid as well.
Advantages of Hybrid systems:
- Continuous power supply
- Utilize the renewable sources in best way
- Low maintenance cost
- High efficiency
- Load management is easy
